Syncroteam

All theory about Team Automata can be found in their web site.

Contact:

Download

There is no package ready to download yet, but CVS can be used to download the sorce files.

>cvs -z3 -d:pserver:anonymous@synchroteam.cvs.sourceforge.net:/cvsroot/synchroteam co -P synchroteam

Compile

The comand "make" will build all layers into lib/ and all executables into bin/

synchroteam/src> make

...

synchroteam/lib> ls

libautomata.a  libcomposer.a  libinput.a  liboutput.a

synchroteam/bin> ls

auto2dot  synchroteam

Execution

synchroteam

synchroteam synchronize a team of automatas.

synopsis:

synchroteam input-automatas [input-automatas ... ] input-synchronization-types

preconditions:

input-automatas [input-automatas ... ]
If a variable is INTERNAL to one automata, it cannot apear into any other one.
input-synchronization-types
Defines the synchronization type for each variable, all of them.

postconditions:

Two files are created with the name of the composition.
NAME1_NAME2_NAME3.[out|dot]
.out for the automata that can be ued for another input.
.dot for the graphical tool.

Example:

>synchroteam automata synctype

>ls

A_B.out

A_B.dot

auto2dot

converts the format from automata to finite_state_machine of dot tool.

synopsis:

auto2dot input-automatas

Example:

>auto2dot automata

>ls

A.dot

dot

converts a .dot file into a graphical representation

see "man dot"

Example:

>dot FILENAME.dot -Tpng -oFILENAME.png

Example

A complete example is shown, with comands and graphs generated by synchroteam.

Inputs

First automata:

c_st_a


.model c_st_a

.inputs  tick token_i req_i

.outputs  grant_i

.state graph

s0 tick s0

s0 token_i s1

s1 tick s0

s1 req_i s2

s2 grant_i s3

s3 tick s0

.marking {s0}

.end


>bin/auto2dot c_st_a

>dot c_st_a.dot  -Tpng -o c_st_a.png

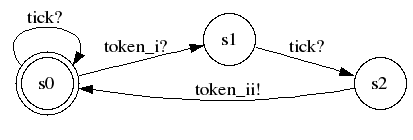

Second automata:

c_st_b


.model c_st_b

.inputs  tick token_i

.outputs  token_ii

.state graph

s0 tick s0

s0 token_i s1

s1 tick s2

s2 token_ii s0

.marking {s0}

.end


>bin/auto2dot c_st_b

>dot c_st_b.dot  -Tpng -o c_st_b.png


Synchronization types:

synctype_cst_ab


token_i:ai

tick:ai

token_ii:ai

req_i:ai

grant_i:ai

Syncroteam

synchroteam synchronize both automatas using the synctype rules and generates .out file ( can be used for other synchronizations) and .dot file ( for graphical representation )


>bin/synchroteam c_st_a c_st_b synctype_cst_ab

>ls

c_st_a_c_st_b.out c_st_a_c_st_b.dot

dot can generate outputs in many formats as png, svg, gif, png, ps, ... see "man dot"

c_st_a_c_st_b.out


.model c_st_a_c_st_b

.inputs req_i tick token_i

.outputs grant_i token_ii

.state graph

s0_s0 tick s0_s0

s0_s0 token_i s1_s1

s0_s2 token_ii s0_s0

s1_s1 req_i s2_s1

s1_s1 tick s0_s2

s2_s1 grant_i s3_s1

s3_s1 tick s0_s2

.marking {s0_s0}

.end


>dot c_st_a_c_st_b.dot -Tpng -oc_st_a_c_st_b.png
